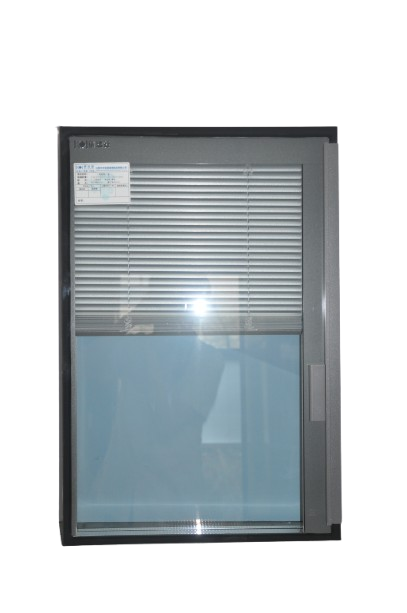

Single Handle Built-In Blinds system integrates adjustable aluminum blinds within insulating glass, combining sun shading, thermal insulation, sound reduction and clean appearance in one solution.
Blinds are fully sealed inside the glass cavity and operated by a patented magnetic transmission system, ensuring stable performance and minimal maintenance.

Features

• Sun Shading & Light Control
• Light transmission reduction coefficient as low as 0.12
• Adjustable blade angle and smooth lifting operation
• Blinds are fully enclosed inside the insulating glass unit, maintaining airtightness and long-term stability



Energy Efficiency

Helps reduce heat transfer through glass surfaces

Typical heat transfer coefficients:

Single glass: 6.0 W/m² · K

S tandard insulating glass: 2.8 W/m² · K

Double-glazed blinds (optimal angle): ≈ 2.0 W/m² · K

Contributes to lower air-conditioning load and improved indoor comfort



Sound Insulation

Noise reduction performance up to 32 dB

Suitable for:

Office partitions

Doors and windows near roads

Residential and commercial buildings



Clean & Low Maintenance

Blinds sealed inside insulating glass

No external curtains required

Dust-free, easy to clean and suitable for hygienic environments



Safety & Durability

Double-layer tempered glass improves impact and wind resistance

Helps reduce fire risks and enhances overall building safety

Suitable for lower-floor applications where security is required



Control System

Manual magnetic control with patented transmission system

Single handle operation

One-side synchronous control for tilting and lifting

Smooth operation with stable alignment



Technical Specifications

Blinds

Blade type: T-12.5 mm

Material: Imported aluminum blinds, powder-coated (uncoated series)

Frame

Frame width: 38 mm

Glass Options

Indoor glass thickness: 5 mm / 6 mm / 8 mm

Outdoor glass: customizable thickness

Hollow layer: 20 mm / 23 mm

Tempered glass available (indoor glass ≤ 8 mm)

Standard Configuration

Total thickness: 5 mm + 19A + 5 mm

Allowable tolerance: +2.0 mm / − 1.0 mm

Size Calculation

Glass size = Visible size + (Overlap 12 mm x 2)

Recommended Size Range

Overlap	Insulating Glass	Width	Height	Max Area
12 mm	5 mm + 19A + 5 mm	230 - 2000 mm	350 - 2300 mm	2.4 m²
12 mm	6 mm + 19A + 6 mm	230 - 2000 mm	350 - 2300 mm	2.5 m²

Applications

Residential windows & doors

Office partitions

Commercial buildings

Hotels, hospitals and clean environments
