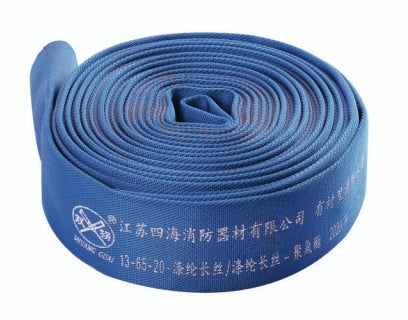

Low Pressure Fire Hose is designed for general firefighting and water delivery applications where stable flow and reliable pressure performance are required.
The hose is manufactured to meet standard working, test and burst pressure requirements, making it suitable for routine fire protection use.

Technical Specifications

Work Pressure	Hose Size	Test Pressure	Burst Pressure
13 bar (1.3 MPa)	50 mm (2.0" )	19.5 bar (2.0 MPa)	39 bar (3.9 MPa)
13 bar (1.3 MPa)	80 mm (3.0" )	19.5 bar (2.0 MPa)	39 bar (3.9 MPa)
16 bar (1.6 MPa)	60 mm (2.5" )	24 bar (2.4 MPa)	48 bar (4.8 MPa)
16 bar (1.6 MPa)	80 mm (3.0" )	24 bar (2.4 MPa)	48 bar (4.8 MPa)

Features

• Designed for low-pressure firefighting and water transfer applications
• Stable pressure performance under rated working conditions
• Available in multiple diameters to suit different fire systems
• Bundling options available:

Iron wire bundling

Lock tube bundling

• Optional reflective or luminous strip for improved visibility during use
• Suitable for indoor and outdoor fire protection environments

Quality & Compliance

Each hose can be supplied with a factory test report

Voluntary certification available upon request

Manufactured under controlled production and testing procedures

Customization & Supply

Size and pressure options selectable according to project needs

Packaging and bundling methods can be customized

Suitable for bulk orders and long-term supply program
