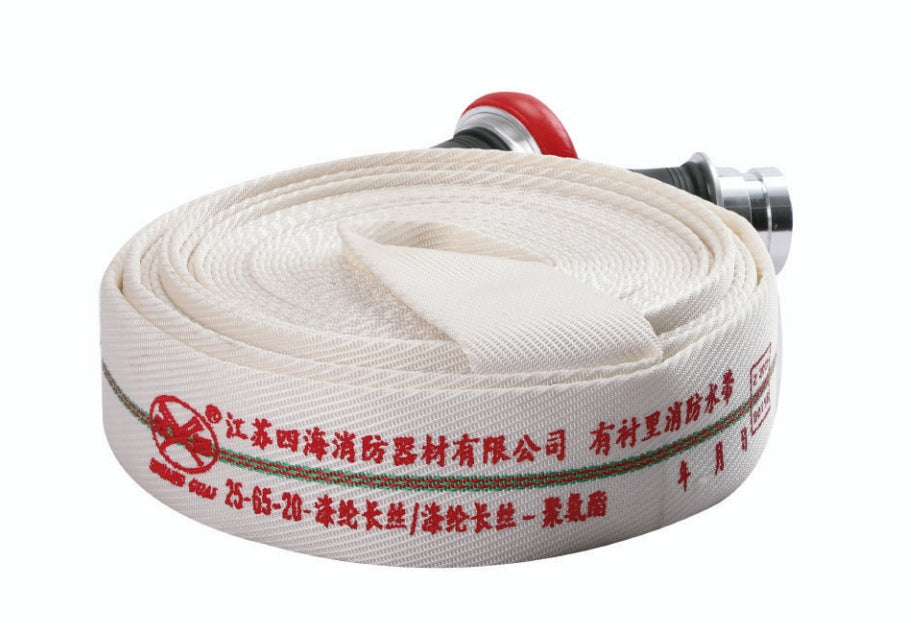

U ltra-high pressure hose is designed for demanding industrial and fluid transfer applications. It offers stable pressure performance, reliable structure and multiple customization options to meet different working conditions.

Technical Specifications

Model: 40-80-20 / 40-65-20

Working Pressure	Specification	Test Pressure	Burst Pressure
BAR / MPa	Metric (mm)	Metric (mm)	BAR / MPa
20 bar / 2.0 MPa	65 mm (2.5")	30 bar / 3.0 MPa	85 bar / 8.5 MPa
20 bar / 2.0 MPa	80 mm (3.0")	30 bar / 3.0 MPa	85 bar / 8.5 MPa
25 bar / 2.5 MPa	65 mm (2.5")	38 bar / 3.8 MPa	90 bar / 9.5 MPa
25 bar / 2.5 MPa	80 mm (3.0")	38 bar / 3.8 MPa	90 bar / 9.5 MPa
40 bar / 4.0 MPa	65 mm (2.5")	60 bar / 6.0 MPa	120 bar / 12.0 MPa
40 bar / 4.0 MPa	80 mm (3.0")	60 bar / 6.0 MPa	120 bar / 12.0 MPa

Model: 25-65-20 / 25-80-20

Working Pressure	Specification	Test Pressure	Burst Pressure
BAR / MPa	Metric (mm)	Metric (mm)	BAR / MPa
25 bar / 2.5 MPa	65 mm (2.5")	38 bar / 3.8 MPa	90 bar / 9.5 MPa
25 bar / 2.5 MPa	80 mm (3.0")	38 bar / 3.8 MPa	90 bar / 9.5 MPa

Features

• Stable pressure performance

Designed to meet specified working, test, and burst pressure requirements for industrial use.

• Flexible bundling options

Available with iron wire or lock tube bundling, depending on installation needs.

• Optional visibility enhancements

Reflective or luminous kinetic energy options can be added for improved visibility in low-light environments.

• Quality documentation available

Test reports and voluntary certifications can be provided upon request.

Customization

Hose diameter options available

Bundling method selectable

Optional reflective or luminous features

Custom specifications can be discussed based on application requirements

Application Notes

Suitable for industrial fluid transfer systems where controlled pressure performance and durability are required. Please confirm operating conditions and pressure requirements before use.
